Exchange Information Store and Its Components

CREATED by , Date: Tuesday, August 19, 2014 | Download Complete PDF

You can call it the Heart of Exchange 2003! Information Store (IS) is the storage system where Exchange Server database: Mailboxes and Public Folders are saved. There are two files where Exchange Server database gets saved: EDB and STM. Depending upon the data type they carry, these files are divided into: Priv.edb and Pub.edb, Priv.stm and Pub.stm.

What is EDB File? The rich-text database of Exchange Server gets saved in EDB file. Also known as "MAPI database" because its contents have MAPI properties that get saved in a standard format called Microsoft Database Encapsulated Format. The EDB file is a B-tree structure where data is organized in 4KB pages. The page might contain data in it, checksum, or pointers to other pages.

What is STM File? Also known as native content database, STM files are responsible to save database that is been downloaded from client Server other than MAPI. The quality of STM file is it can be read in text editor if the database is dismounted from Server. The two 4KB pages are reserved for the header and data is saved into 512 bytes segments.

What Is Private and Public Folder? Individual mailboxes of Exchange Server database gets saved in private folder. On the other hand, the data that is being shared by different group of people (mail, documents, contacts etc) gets saved into a special folder called public folder. Unlike private folder, public folder can be accessed by multiple users.

How to Start Exchange Information Store

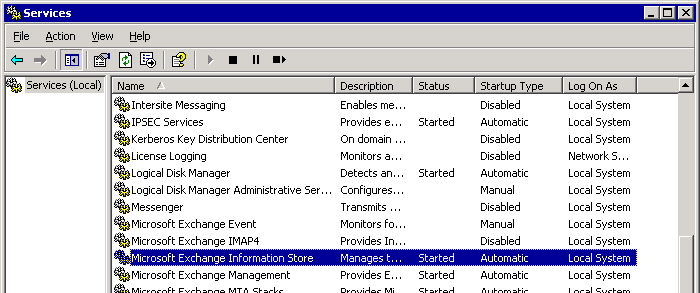

Step 1 : Run "services.msc" command. In the window that gets opened, locate "Microsoft Exchange Information Store Service (MSExchangeIS)".
Note: Make a point to note that the "Status" column is updated as "Started".

Step 2 : Right-click on Information Store and choose "Start".

Exchange 2003 Store Limit

Exchange 2003 Standard Edition
  • Only one storage group can be created on Server
  • Exchange database clustering is not included
  • 16 GB database per Server (75GB in SP2)

Exchange 2003 Enterprise Edition
  • A maximum of four storage groups can be created per Server
  • Exchange database clustering is added
  • 16 terabyte database limit per Server

Store Should Pass the ACID Test!

For consistency of Exchange Server database transactions, it is important that it clears the ACID (Atomic, Consistent, Isolation, Durability) test. A transaction is series of operations that are performed against database and are responsible to make it consistent.

  • Atomic: All operations involved in completing a transaction will occur; else the transaction would e considered as incomplete. The criteria followed here is All or Nothing.
  • Consistent: When all transactions are written to the database successfully, it marks consistent state of the database.
  • Isolation: Updation of database (Insert, Delete, Move etc) will not be visible to user's end until the transaction is written to the database.
  • Durability: Once all transactions are written to database, they will be preserved even if system crashed.

This feature is to make the Store robust and reliable so that in case any disaster occurs, the database can be recovered.

Corruption of Store Database

There are chances that Exchange Server experiences failure where the database has to be brought back to consistent state by the application or by manual actions. At lowest level, damage to EDB file pages, leaves, header, or catalog is considered as Physical Corruption. Meanwhile, if corruption has caused distortion in B-tree structure, affected links, indexes and tables, then that kind of damage is referred to as Logical Corruption.

Microsoft offers its native solutions to deal with both types of corruption issues. ESEutil can be used to handle Page-Level corruption, and Isinteg to deal with ESE database or information store level corruption. Both these tools are command line solutions and take relatively high time for recovery.

However, there are third party solutions too that gives users a way to recover data from EDB file. These tools are available at certain investment and give a GUI provision to restore EDB data into PST or Exchange Server.
